Product information

  • Category: Hydraulic Orbital Motors
  • Brand: M+S
  • Model: MV
  • Product Type: LSHT Medium Duty
  • Product Catalog: Download Catalog

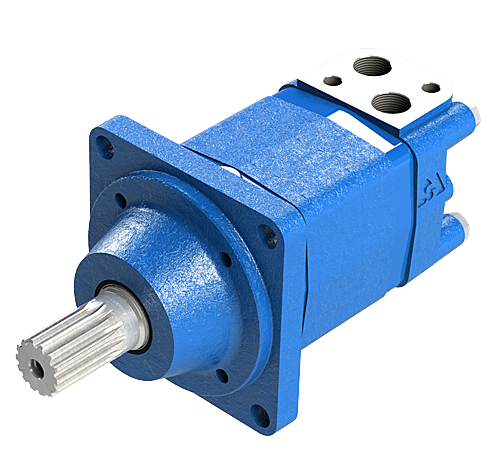

Medium Duty Orbital Motor MV

Orbit motors convert hydraulic energy (pressure, oil flow) into mechanical energy (torque, speed). Hydraulic orbit motors operate on the principle of an internal gear (rotor) rotating within a fixed external gear (stator). The internal gear transmits the torque generated by the application of pressure from hydraulic oil fed into motor which is then delivered via the motor's output shaft. Orbit motors have high starting torque and constant output torque at wide speed range

Application

Conveyors

Road building machines

Mining machinery

Special vehicles

Agricultural machines

Food industries

Plastic abd rubber machinery etc.

Option

Model - Spool valve, gerotor

Flange and wheel mount

Side and rear ports

Short motor

Tacho connection

Speed sensoring

Shafts - straight, splined and tapered

Series with pressure valve(s)

SAE and BSPP ports

Other special features

Code

Displacement

[cm3/rev]

Max. speed

[RPM]

Max. Torgue

[daNm]

Max. Output

[kW]

Max. Pressure Drop

[bar]

Max. Oil Flow

[Ipm]
cont. int* cont. int* cont. int* cont. int* cont. int*
MV 315 314,5 510 630 92 111 42,5 51 200 240 160 200
MV 400 400,9 500 600 118 141 53,5 64 200 240 200 240
MV 500 499,6 400 480 146 176 53,5 64 200 240 200 240
MV 630 629,1 320 380 166 194 48 56 180 210 200 240
MV 800 801,8 350 300 188 211 42,5 48 160 180 200 240



* Intermitten operation: the permissible values may occur for max. 10% of every minute.

General:
Pressure fluid   Mineral based- HLP(DIN 51524) or HM(ISO 6743/4)
Temperature range, °C -40÷140
Optimal Viscosity range, mm2/s  20÷75
Filtration   ISO code 20/16 (Min. recommended fluid filtration of 25 micron )
